Target Control System
Rotorua Pistol Club

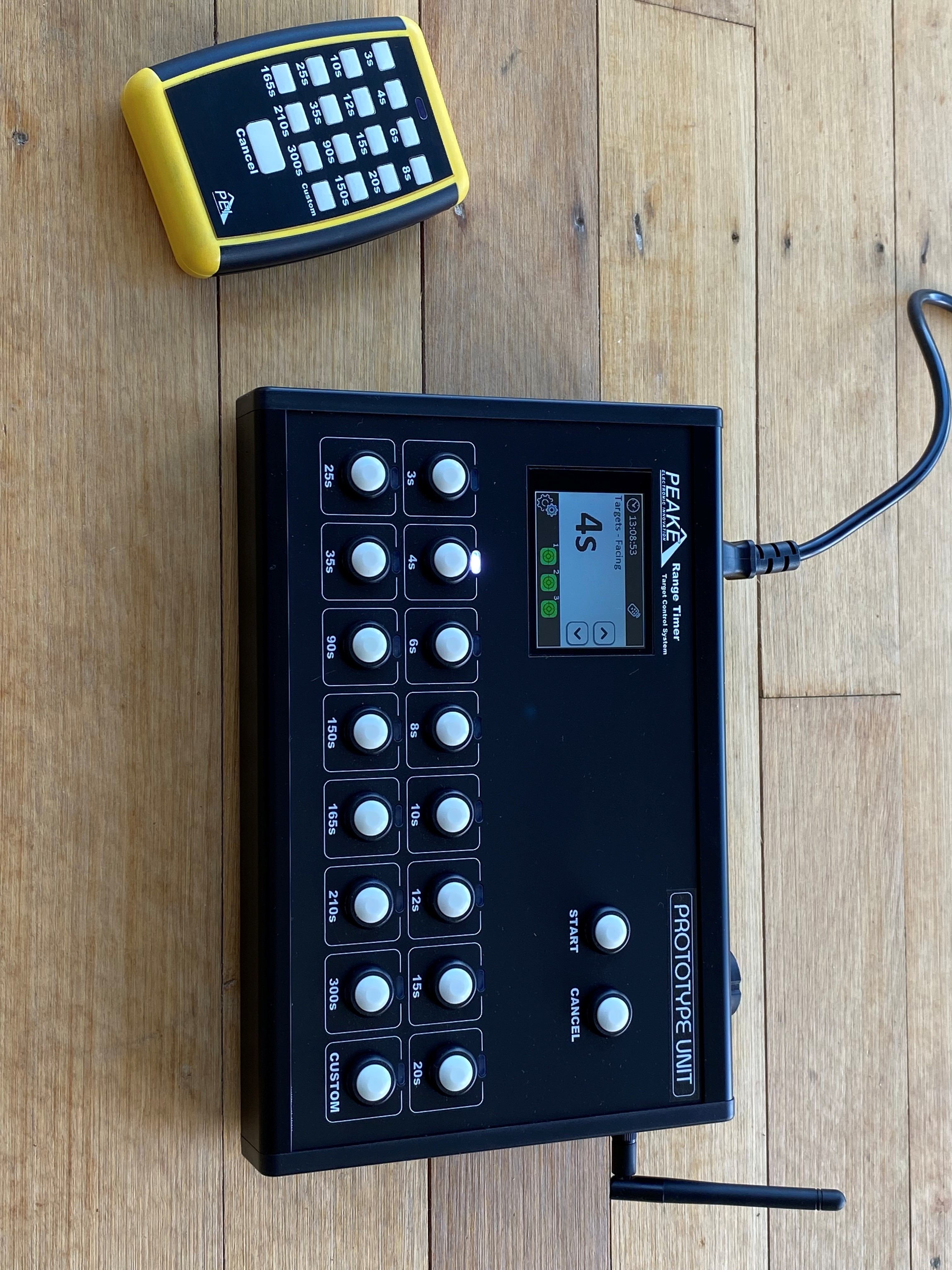

A sophisticated timing and control system designed and built specifically for the Rotorua Pistol Club range. This customised solution provides precise control over target timing and movement for various shooting disciplines.
×
![]()
Key Features
- Customisable timing controls with preset options (4, 6, 8, 15, 35, and 165 seconds)
- Wireless remote control using NZ unlicensed radio band (433MHz/2.4GHz)
- Clear LCD display showing current timing settings
- LED indicators for active timing selection
- Integrated 24VDC power supply with MOSFET switching
- Automated edge and face phase timing sequences
Control Interface

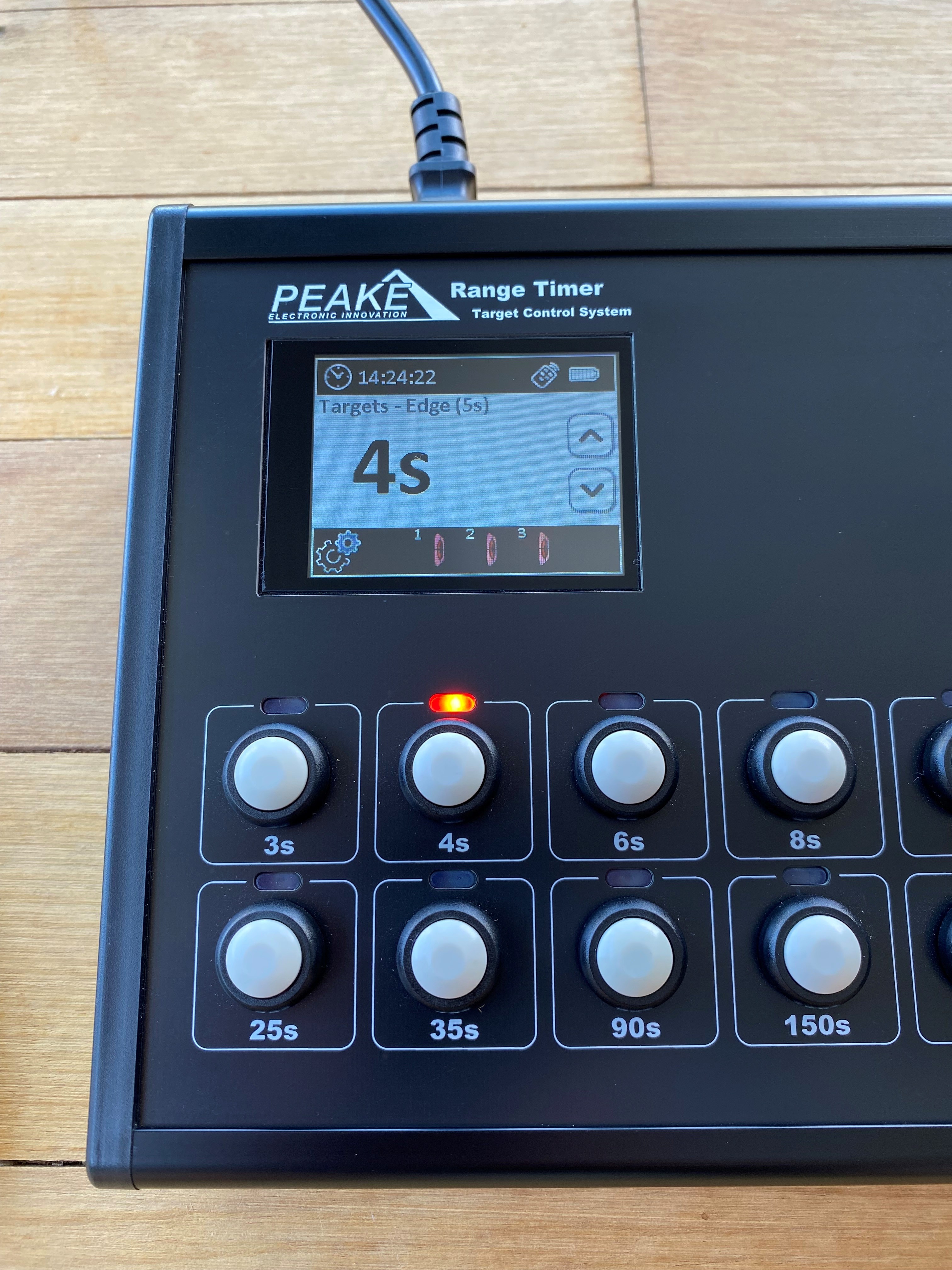

Features both local and wireless control options with clearly labelled buttons for each timing preset. The LCD screen provides real-time feedback of current settings and system status.
Timing System
Sophisticated timing control with 5-second edge phases and customisable face phases. All timings are precisely controlled and can be programmed to meet specific requirements.
Power & Control

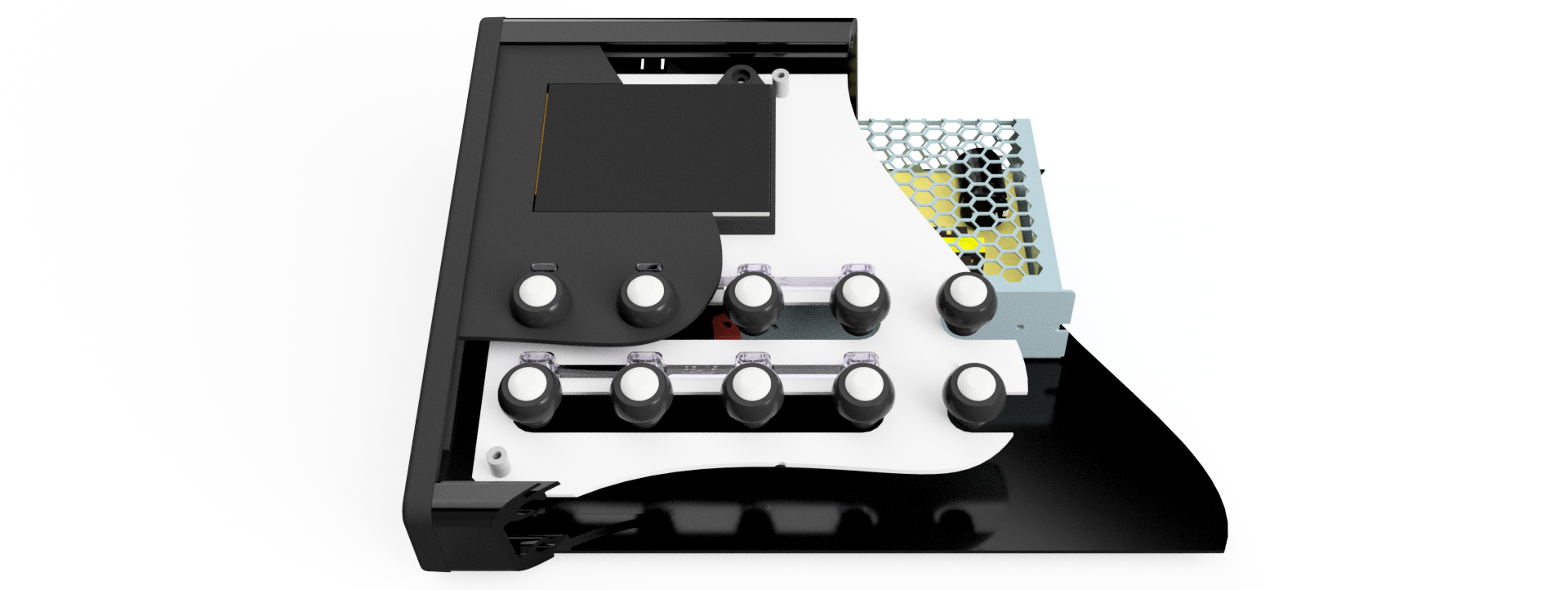

Built-in 2A 24VDC power supply with high-current MOSFET switching for reliable solenoid control. Compatible with existing site wiring and pneumatic systems.
